5-10 GAL ELECTRIC BATCHES

The FUSION 15™

Designed as our most compact and portable model ever and loaded with professional features, the Fusion 15™ is the most versatile system we build.  We call it the Fusion because it's truly is a culmination of pro design features, conveniences, and fabrication technology that we have drawn from our other designs as well as countless custom builds.  15.5 Gallon Kettles will brew a 10 gallon batch.  The small frame (63.5" overall length) allows this system to easily transport in most SUV's.  The Fusion 15 systems are quickly becoming the preferred system for commercial pilot use, beer brewing education, and home-brewers that simply want the best.  The electric version is silent, efficient,and fast.  Best of all, it's safe for indoor use.

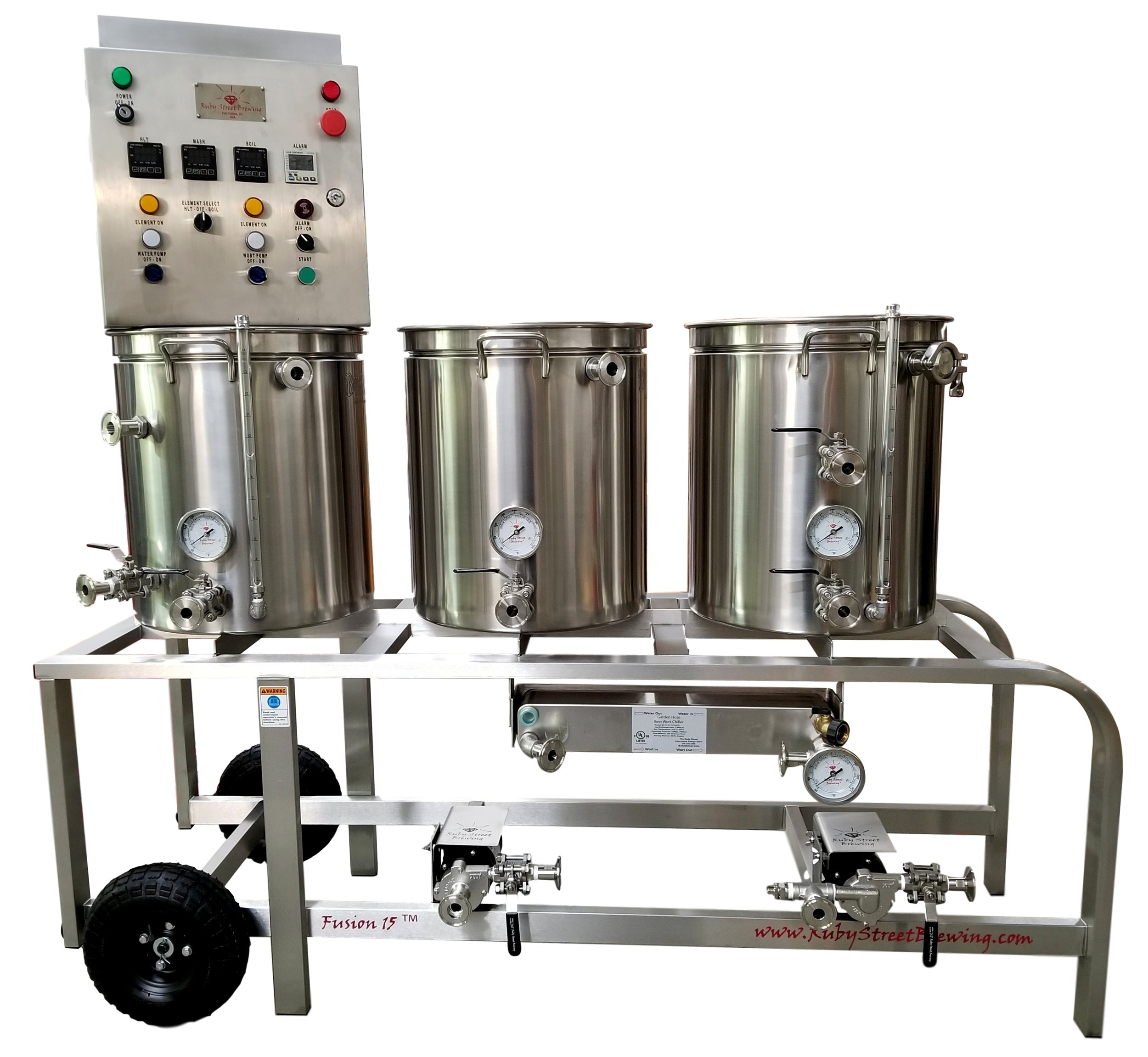

Shown with options: Panel Mounting Bracket, Plate Chiller, Whirlpool, Boil Kettle Thermometer

Shown with options: Panel Mounting Bracket, Plate Chiller, Whirlpool, Boil Kettle Thermometer

Available in Full Stainless Steel

Available in Full Stainless Steel

Cool touch silicone handles

Cool touch silicone handles

Volume markings inside of kettles

Volume markings inside of kettles

Complete System Includes:

  • (1) Frame - Welded Steel Construction (powder-coated)

  • (3) 15.5 Gallon Stainless Steel Premium Kettles with Volume Markings and Lids

  • (2) 5500 Watt Elements

  • (1) 30 amp Electric Panel (with digital temp,pump control, and process timer)

  • (2) Stainless Steel False Bottoms

  • (2) Thermometers (HLT & Mash Tun)

  • (2) Stainless Steel Pumps (pump controls on panel)

  • (2) Thru Wall Return Fittings (HLT and Mash tun)

  • (1) HERMS coil

  • All SS Tri-clover Fittings & Silicone Tubing

  • Complete Owners Manual (with 1 year limited warranty)



Reviews

"Even though I've had my system for almost a year now, I just had the privilege of brewing on it for the first time this weekend. Shame on me.  But, first time, learning a new system, etc, it was an absolute joy to brew on my Ruby. Everything worked beautifully, and I think I have turned out the finest brew I've made to date! Just wanted to say thanks.

- John in Baltimore



" I just received my RSB frame today, and I have one word. WOW! Most of the pics I've seen do not fully capture what it's like seeing one up close. The sculpture is very well built and is a thing of beauty. Thank you Ruby Street Brewing for making an amazing product. I'm so excited to break it in"

 - Jeff Maass - Seattle, WA



Specifications

  • The Fusion 15 System Dimensions: 63.5” wide x 26” deep x 42.5” high (height includes kettles)

  • SYSTEM POWER REQUIREMENTS:

    • Standard PID Panel & Touchscreen 30 Amp - Requires (1) 208-240V Single Phase 30 Amp GFCI Circuit with NEMA 14-30 Type Outlet

    • 50 Amp PID Panel - Requires (1) 208-240V Single Phase 50 Amp GFCI Circuit with NEMA 14-50 Type Outlet

    • UL/cUL 30 Amp Panels (PID & Touch) - Requires (1) 208-240V Single Phase 30 Amp GFCI Circuit (Hard Wired to Panel)

    • UL/cUL 50 Amp Panels (PID & Touch) - Requires (1) 208-240V Single Phase 50 Amp GFCI Circuit (Hard Wired to Panel)

    • All Circuits Require 4 Wire Service with Neutral - All Electrical Service Installations Must Be Performed By a Licensed Electrician




Popular Add On Options

Custom Frame Color

Our standard red frames are generally in-stock for immediate shipment.  Allow up to 4 weeks for custom colors. Click Here For Color Options

Plate Chiller Package

Plate chiller is mounted to frames for efficiency and convenience.

Whirlpool Arm

Our all stainless steel Whirlpool Arm provides for clearer wort, faster chilling and optimum hop utilization.

Stainless Steel Hop Filter

Our hop filter makes cleaning your brewery a breeze.  The large capacity 6" x 14" 400 micron screen is made of 100% stainless steel.
