1/2 BBL ELECTRIC BATCHES
The FUSION 25™
Modeled after the popular Fusion 15, and based on a demand for larger kettles, we are excited to launch the all new Fusion 25. The perfect combination of volume, performance, and value. The 25 gallon pots will brew finished batches ranging from 10-18 gallons. The electric version is silent, efficient,and fast. Best of all, it's safe for indoor use.

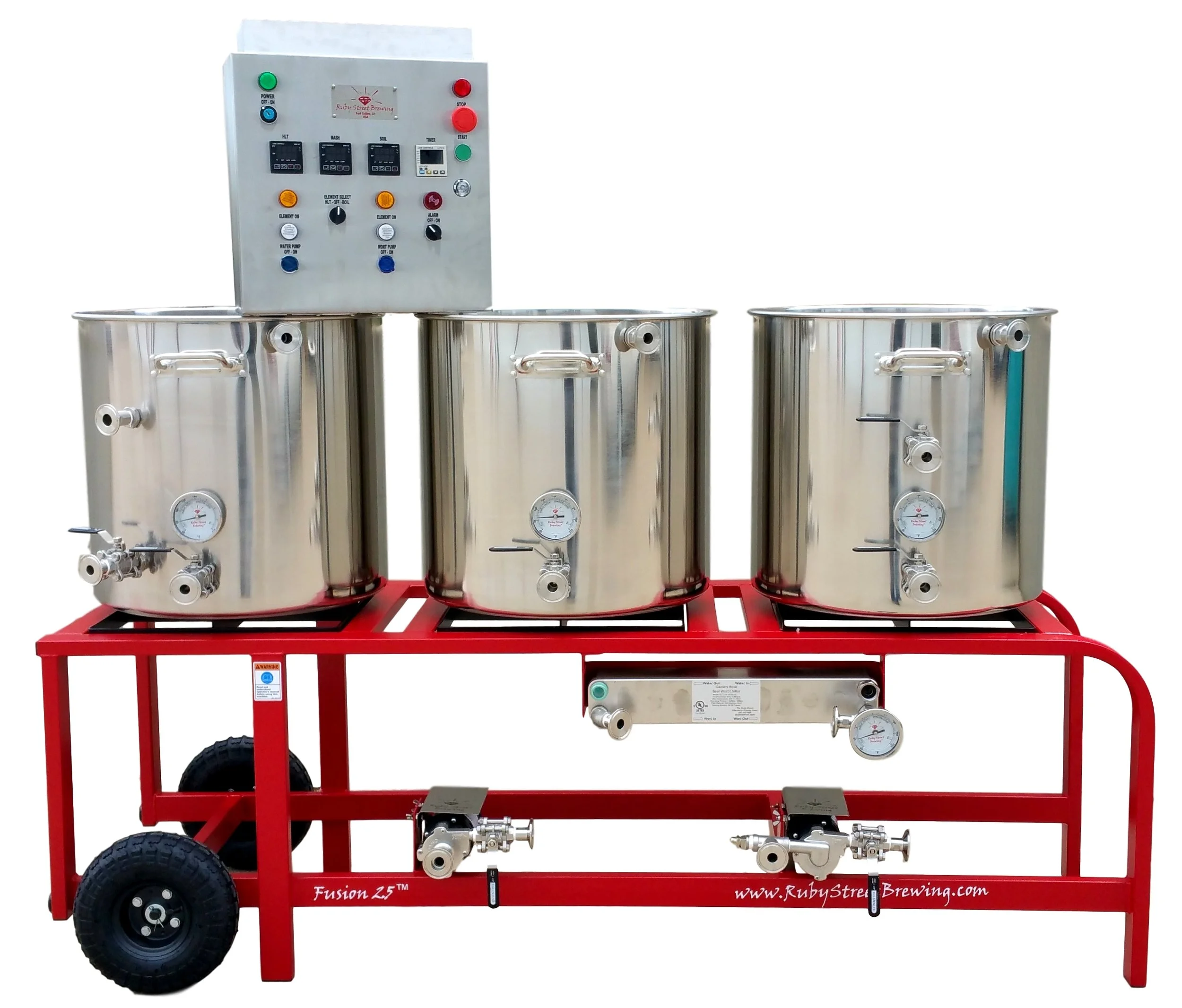

Shown with options: Plate Chiller & Whirlpool
Complete System Includes:
(1) Frame - Welded Steel Construction (powder-coated)
(3) 25 Gallon Stainless Steel Kettles (with lids)
(2) 5500 Watt Elements
(1) 30 amp Electric Panel (with digital temp, pump control, and process timer)
(2) Stainless Steel False Bottoms
(3) Thermometers
(2) Stainless Steel Pumps(pump controls on panel)
(3) Thru Wall Return Fittings
(1) HERMS coil
All SS Tri-clover Fittings & Silicone Tubing
Complete Owners Manual (with 1 year limited warranty)
Reviews
"After making the decision to “go electric”, I did research on all the other turnkey options and went with the Ruby Street Fusion 25 gallon system. I couldn’t be happier. It was totally prepped and was a breeze to set up. The system (beautiful handmade frame, kettles, wiring, tubing, electric panel, etc) is amazing - clearly Ruby Street put a lot of thought and effort into the design. It has dramatically simplified my brew day and has made it much more enjoyable. Most impressive is the responsiveness of Brian and his crew! When I email with a question or concern, Brian responds immediately with great advice, encouragement, and expertise. I am so glad I decided on Ruby Street, I couldn’t be happier with the system and my experience."
- Mike Archibeck - Homebrewer
"Brewed my first batch on my system and was very impressed with the overall efficiency...bordering on 90%! Thanks for the quality product!
- DC Brewing - Roseburg, OR
Specifications
The Fusion 25 System Dimensions: 70-1/2" wide x 26" deep x 44-1/2' high (height includes kettles)
SYSTEM POWER REQUIREMENTS:
Standard PID Panel & Touchscreen 30 Amp - Requires (1) 208-240V Single Phase 30 Amp GFCI Circuit with NEMA 14-30 Type Outlet
50 Amp PID Panel - Requires (1) 208-240V Single Phase 50 Amp GFCI Circuit with NEMA 14-50 Type Outlet
UL/cUL 30 Amp Panels (PID & Touch) - Requires (1) 208-240V Single Phase 30 Amp GFCI Circuit (Hard Wired to Panel)
UL/cUL 50 Amp Panels (PID & Touch) - Requires (1) 208-240V Single Phase 50 Amp GFCI Circuit (Hard Wired to Panel)
All Circuits Require 4 Wire Service with Neutral - All Electrical Service Installations Must Be Performed By a Licensed Electrician
Popular Add On Options
Custom Frame Color
Our standard red frames are generally in-stock for immediate shipment. Allow up to 4 weeks for custom colors. Click Here For Color Options
Plate Chiller Package
Plate chiller is mounted to frames for efficiency and convenience.
Whirlpool Arm
Our all stainless steel Whirlpool Arm provides for clearer wort, faster chilling and optimum hop utilization.
Stainless Steel Hop Filter
Our hop filter makes cleaning your brewery a breeze. The large capacity 6" x 14" 400 micron screen is made of 100% stainless steel.
Build your system:
Similar Systems:
Alpha Ruby (45 Gal Electric)
Designed as a Nano Brewery / Pilot Brewery, this system features 45 Gallon Kettles and will brew a true 1 bbl (31 gallon) batch. Featuring two stainless pumps and all 1.5" tri-clover connections, this brewery has found it's niche as an economical option for brew pubs, large breweries, and garage fanatics. The electric version is silent, efficient,and fast. Best of all, it's safe for indoor use.
Fusion 25 (25 Gal Gas)
Modeled after the popular Fusion 15, and based on a demand for larger kettles, we are excited to launch the all new Fusion 25. This culmination of large 10" burners nested under tri-clad bottom 25 gallon pots creates a winning combination of volume, performance, and value. The 25 gallon pots will brew finished batches ranging from 10-18 gallons. The small frame (70.5" overall length) allows this system to easily transported.
Fusion 15 (15 Gal Electric)
Designed as our most compact and portable model ever and loaded with professional features, the Fusion 15™ is the most versatile system we build. We call it the Fusion because it's truly is a culmination of pro design features, conveniences, and fabrication technology that we have drawn from our other designs as well as countless custom builds. 15.5 Gallon Kettles will brew a 10 gallon batch. The small frame (63.5" overall length) allows this system to easily transport in most SUV's. The Fusion 15 systems are quickly becoming the preferred system for commercial pilot use, beer brewing education, and home-brewers that simply want the best. The electric version is silent, efficient, and fast. Best of all, it's safe for indoor use.
