Fusion 15 - Electric
Fusion 15 - Electric

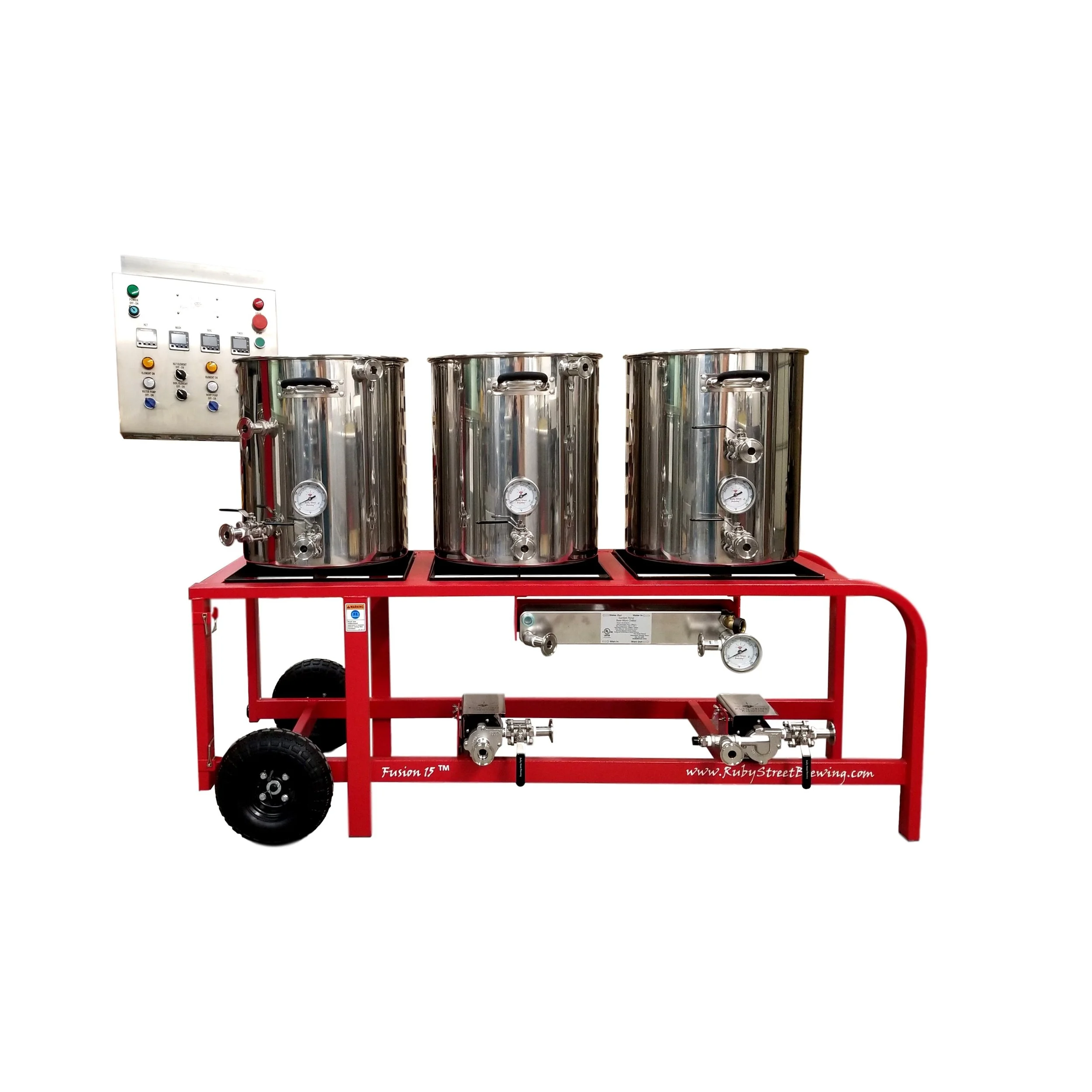

Designed as our most compact and portable model ever and loaded with professional features, the Fusion 15™ is the most versatile system we build. We call it the Fusion because it's truly is a culmination of pro design features, conveniences, and fabrication technology that we have drawn from our other designs as well as countless custom builds. 15.5 Gallon Kettles will brew a 10 gallon batch. The small frame (63.5" overall length) allows this system to easily transport in most SUV's. The Fusion 15 systems are quickly becoming the preferred system for commercial pilot use, beer brewing education, and home-brewers that simply want the best. The electric version is silent, efficient, and fast. Best of all, it's safe for indoor use.
Payment Options:
Pay 100% using ‘ADD TO CART’ button below (most major credit cards accepted)
50% Deposit - Since our equipment is built to order we offer the option of a 50% deposit to secure the order with the balance due in full prior to shipping. We also accept payment via check or wire transfer and offer financing for deposit/payment. CLICK HERE TO CONTACT US FOR DETAILS
Current lead time 8 weeks
Base, Loaded, Loaded + packages (below) include our most popular option choices. We can build these systems with specialty options and customizations dependent upon your specific needs and budget via a custom quote
Base Fusion 15 Includes:
(1) Frame - Welded Steel Construction (powder-coated)
(3) 15.5 Gallon Stainless Steel Premium Kettles with Volume Markings and Lids
(2) 5500 Watt Elements
(1) 30 or 50 amp Electric Panel (with digital temp, pump control, and process timer)
50 Amp allows HLT and Boil elements to operate simultaneously for back to back (double batching)
(2) Stainless Steel False Bottoms
(3) Thermometers (HLT, Mash Tun, and Boil)
(2) Stainless Steel Pumps (pump controls on panel)
(2) Thru Wall Return Fittings (HLT and Mash tun)
(1) Whirlpool inlet (Boil)
(1) HERMS coil
All SS Tri-clover Fittings & Silicone Tubing
Complete Owners Manual (with 1 year limited warranty)
Loaded Fusion 15 includes all of the above plus:
Plate Chiller (Heat Exchanger)
Adjustable Hop Basket
Loaded + Fusion 15 includes all of the above plus:
In-line Oxygen System
Fill and Flush Cleaning System
The Fusion 15 System Dimensions: 63.5” wide x 26” deep x 42.5” high (height includes kettles)
SYSTEM POWER REQUIREMENTS:
Standard PID Panel Requires (1) 208-240V Single Phase 30 Amp GFCI Circuit with NEMA 14-30 Type Outlet
50 Amp PID Panel - Requires (1) 208-240V Single Phase 50 Amp GFCI Circuit with NEMA 14-50 Type Outlet
All Circuits Require 4 Wire Service with Neutral - All Electrical Service Installations Must Be Performed By a Licensed Electrician
Looking for a more customized experience and additional system options?
CLICK HERE: to build a custom Fusion 15 Electric system and receive a sales quote
