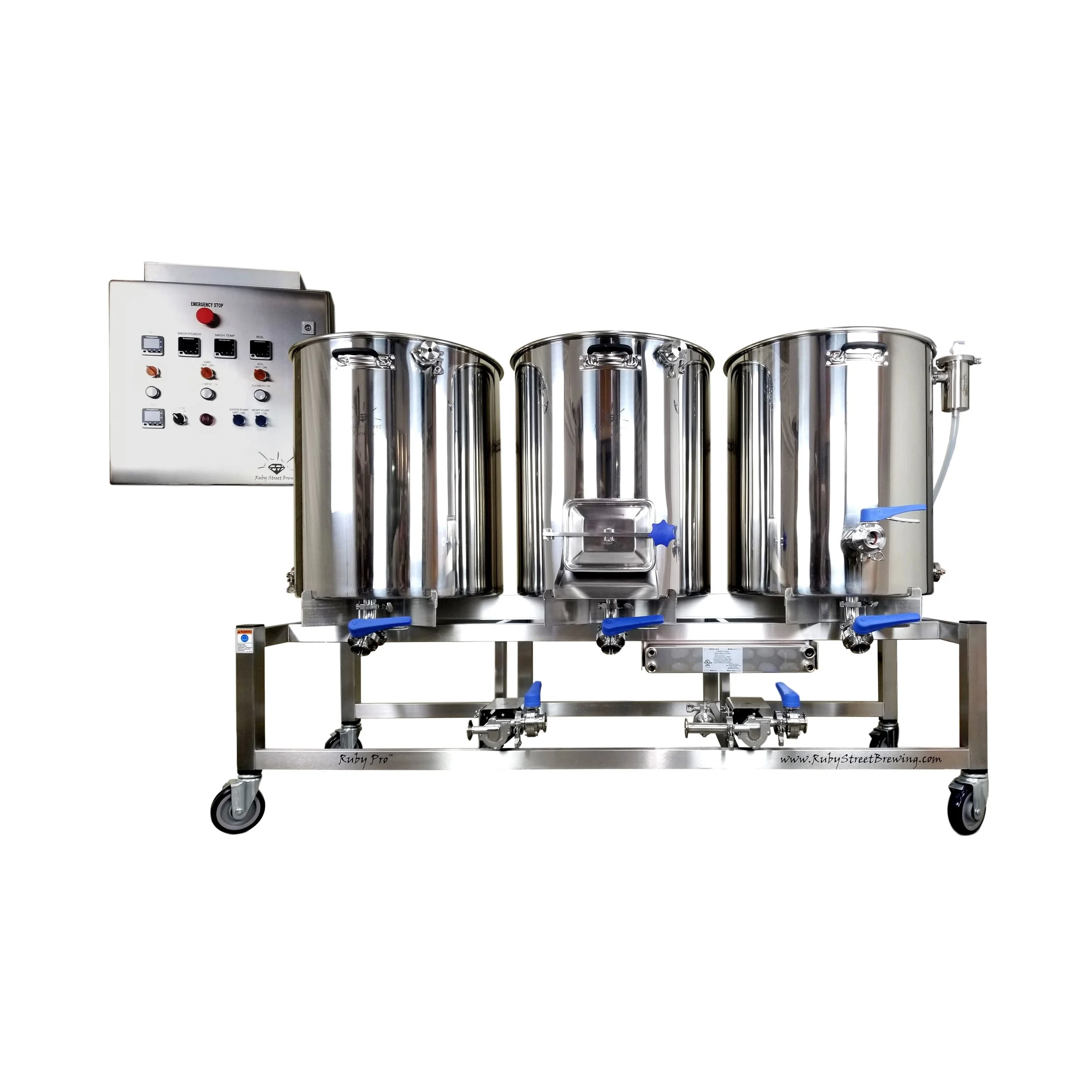

Ruby Pro Nano 1 BBL - Electric
Ruby Pro Nano 1 BBL - Electric
Our team spent over 2 years designing a system that would meet the rugged demands of professional brewers. We took features from large brewing systems and scaled everything down into a 1 BBL sized unit. With bottom draining kettles and a spray-ball, there’s no need to remove the kettles from the frame when cleaning. The bottom of the mash tun manway is flush with the false bottom for quick and easy grain clean-out. Welded industry standard TC fittings and sanitary butterfly valves means there’s no threaded fittings on wort. Our premium 50+ gallon kettles include internal volume markings in gallons/liters. This unit also features an innovative 6kw variable power internal RIMS heater on the Mash Tun. Internal RIMS means fewer connections, easier cleaning, faster step mashes and more consistent mash temps. Dual mash controllers allow you to independently control both the RIMS element power output and the mash temperature. The included 100 amp panel comes standard with double batching capability (run up to (4) 6kw elements simultaneously). With the internal RIMS you have the ability to quickly heat strike water directly in the mash tun (even while boiling a previous batch). All neatly stacked on a beautiful hand TIG welded stainless frame rolling on heavy duty 5” locking casters.
Payment Options:
Pay 100% using ‘ADD TO CART’ button below (most major credit cards accepted)
50% Deposit - Since our equipment is built to order we offer the option of a 50% deposit to secure the order with the balance due in full prior to shipping. We also accept payment via check or wire transfer and offer financing for deposit/payment. CLICK HERE TO CONTACT US FOR DETAILS
Current lead time 8 weeks
Base, Loaded, Loaded + packages (below) include our most popular option choices. We can build these systems with specialty options and customizations dependent upon your specific needs and budget via a custom quote
Base Ruby Pro Includes:
(1) Frame - TIG welded Stainless Steel on 5” Locking Casters
(3) 50+ Gallon Stainless Steel Tanks with Bottom Drains and Internal Volume Markings (gallons / liters) - Lids Included
(1) 100 Amp 5 Element PID Control Panel (double batching)
(4) 5500 Watt Elements
(1) 6000 Watt Variable Power Internal RIMS heating system
(2) Stainless Steel False Bottoms
(1) Grain Out Manway on Mash Tun
(2) Stainless Steel Pumps
(1) Whirlpool Inlet on Boil Kettle
(1) Vorlauf and Sparge Assembly
(2) Adjustable Hop Baskets
All SS Tri-clover Fittings & Valves
Platinum Cured Silicone Hoses Included
Integrated Cleaning Spray Ball
Oversized Heat Exchanger
Complete Owners Manual (with 1 year limited warranty)
Loaded Ruby Pro includes all of the above plus:
In-line Oxygen System
Fill and Flush Cleaning System
Steam Slayer - Steam Condenser
Loaded + Ruby Pro includes all of the above plus:
Upgraded 7” Touchscreen Digital Control with Wifi
Specifications
Ruby Pro System Dimensions: 77" wide x 27” deep x 53” high
POWER SUPPLY REQUIREMENTS:
Standard 100 Amp PID Panel - Requires (2) 208-240V Single Phase 50 Amp GFCI Circuits with NEMA 14-50 Type Outlets
All Circuits Require 4 Wire Service with Neutral - All Electrical Service Installations Must Be Performed By a Licensed Electrician
Looking for a more customized experience and additional system options?
CLICK HERE: to build a custom Ruby Pro electric system and receive a sales quote
